Why You Need Waterproof ATV Winch & What to Look for

ATVs are built to go where trucks and side-by-sides often can’t — muddy trails, flooded paths, and steep terrain.

In those situations, a winch quickly becomes one of the most important recovery tools on the machine.

The challenge is that winches sit at the very front of the ATV, where they are constantly exposed to mud, water crossings, and trail debris. Over time, that exposure can allow moisture to reach the motor, electrical components, and gearbox.

When that happens, the winch may fail at the exact moment you need it most.

A waterproof ATV winch is designed for these conditions. By sealing the motor, electrical system, and internal gears, it helps prevent water and mud from damaging the components that keep the winch working.

This guide explains why waterproof winches matter, how they work, and what features to look for when selecting winch for your ATV.

Are ATV Winches Waterproof?

Most ATV winches are water-resistant but not fully waterproof by default. A true waterproof ATV winch uses sealed motor housings, waterproof contactors, and gasketed gearboxes to prevent water from reaching internal components. Many models carry IP67 or IP68 ratings, meaning they can withstand temporary submersion without damaging the motor or electrical system.

Because winches sit at the front of the ATV, they are constantly exposed to:

• mud spray
• creek crossings
• snow and ice
• pressure washing

Without proper sealing, moisture can enter the motor or electrical system and eventually cause corrosion or electrical failure.

Rider takeaway: If you regularly ride through mud or water crossings, a waterproof winch is far more reliable than a basic water-resistant model.

Read: Why ATV riders go for electric winches?

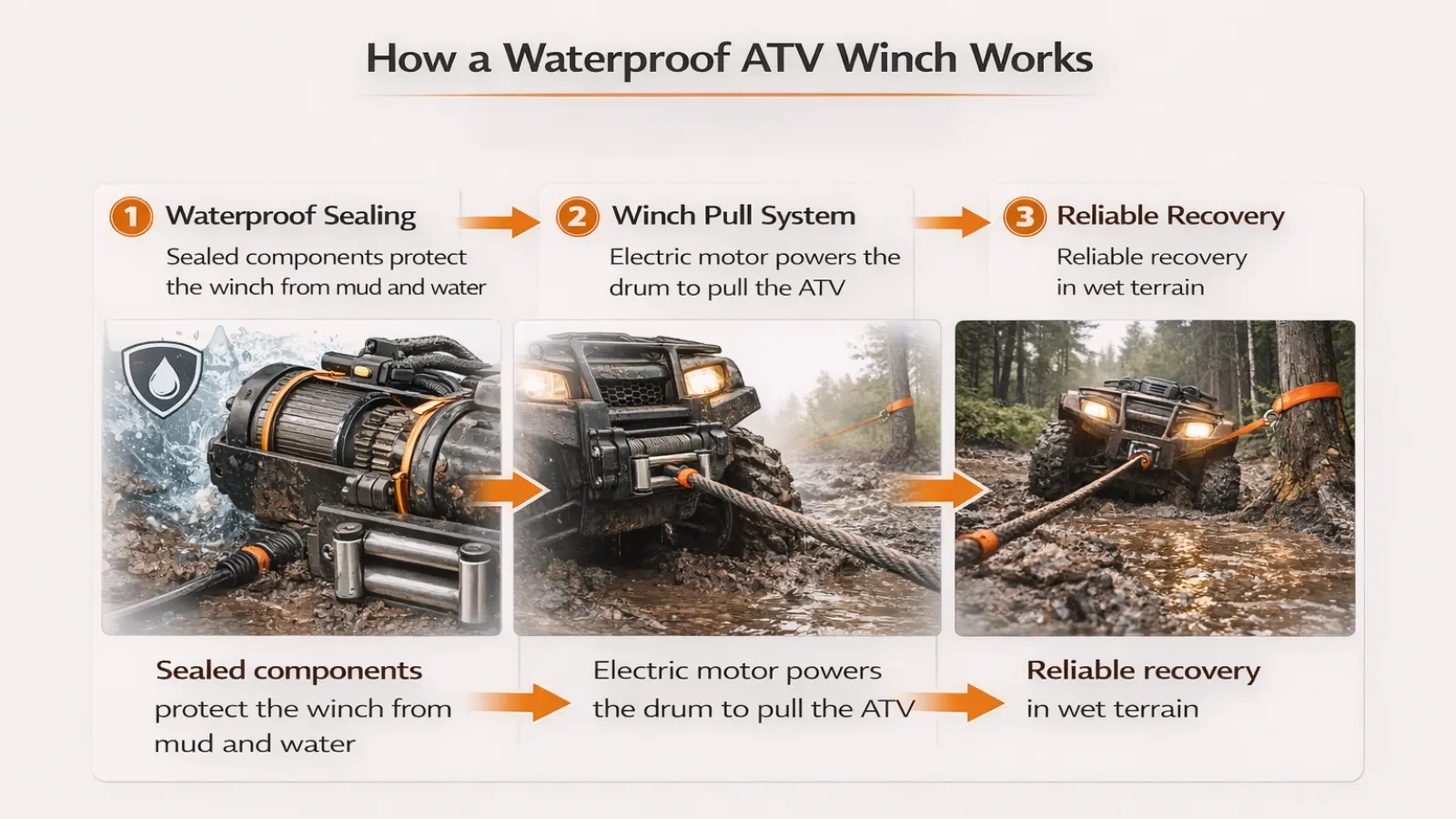

What Is a Waterproof ATV Winch?

A waterproof ATV winch is built to survive wet and muddy conditions without failing. If you want one for your ATV, it must be an electric ATV winch because hydraulic winches are not commonly meant for ATV riding.

Not all winches are made to handle moisture. A true waterproof winch is sealed tight to keep water, dirt, and grit. Thus, it saves the internal components like the motor, gears, and solenoid from damage. The main difference comes down to how well the parts are protected.

Look for models with a clear waterproof rating, such as IP67 or IP68. These ratings are based on international standards that define how well a device can resist water and dust.

• IP67 means it can handle being submerged up to 1 meter deep for 30 minutes.
• IP68 goes even further—it’s rated for deeper and longer submersion (often up to 1.5 meters).

Waterproof winches are also built with sealed motor housings, weatherproof contactors, and protective covers for wired and wireless controls. All of this adds up to a winch that can power through extreme conditions without shorting out or locking up.

Waterproof construction becomes especially important for machines that regularly encounter mud holes, creek crossings, or wet snow. Riders comparing equipment for those conditions may want to see which ATV winches hold up reliably in real-world recovery environments. And side-by-side owners dealing with heavier machines can review UTV winches built to handle demanding recovery loads.

Why a Waterproof ATV Winch Matters

ATVs are often ridden in conditions that are tough on mechanical equipment. Mud holes, water crossings, snowmelt, and wet trails are part of the experience.

Already pointed out clearly that mounted on the front of the vehicle, ATV winches become the most vulnerable to elements and wet conditions. Over time, these conditions can allow water and mud to work their way inside a standard winch.

When that happens, several problems can begin to develop:

• electrical corrosion inside the motor
• short circuits in the solenoid or contactor
• contaminated grease in the gearbox
• premature wear of internal gears

The biggest issue is that these failures usually appear when the winch is needed most — during a recovery.

If your ATV gets stuck in deep mud or halfway through a water crossing, a damaged winch may stall, hesitate, or fail completely.

Waterproof winches are designed to prevent this by sealing the internal components that are most vulnerable to water intrusion.

Rider takeaway: A waterproof winch isn’t just a durability upgrade — it’s a reliability upgrade for your ATV recovery setup.

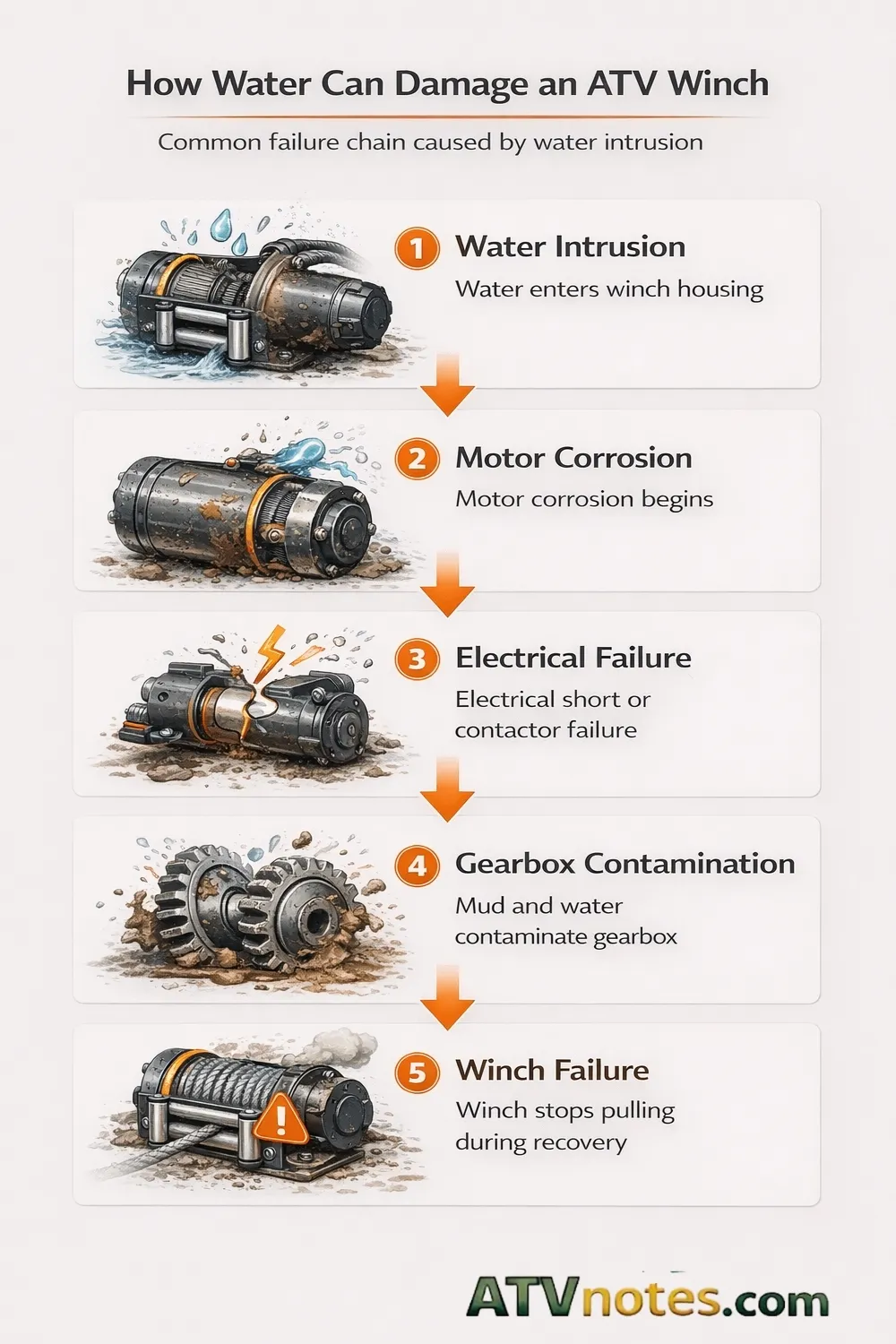

What Actually Fails When Water Gets Inside a Winch

Many riders assume water mainly damages the cable or drum, but the real problems occur deeper inside the winch.

When water enters a winch housing, it usually affects three key components first.

The winch motor

Electric winch motors contain brushes and electrical contacts that are sensitive to moisture. If water reaches these components, corrosion can develop and reduce the motor’s performance.

Over time, this can cause:

• reduced pulling power
• intermittent operation
• complete motor failure

Dive in: Crucial role of ATV winch solenoid in winching

The contactor or solenoid

The contactor sends electrical power from the ATV battery to the winch motor. When water reaches these electrical connections, it can cause short circuits or stuck relays. Therefore, testing the winch solenoid is a common ritual when winch causes trouble.

But modern waterproof winches often use sealed contactors that are designed to resist water damage.

The gearbox

Inside the winch is a planetary gear system packed with grease. If water or mud contaminates the gearbox, the grease can break down, allowing metal parts to wear prematurely.

Eventually, the winch may slow down, become noisy, or completely lock up.

Learning how electrical issues can set ATV winches dysfunctional will take you deeper in this direction.

Rider takeaway: Water damage rarely shows up immediately — but once corrosion begins inside the motor or gearbox, winch reliability quickly drops.

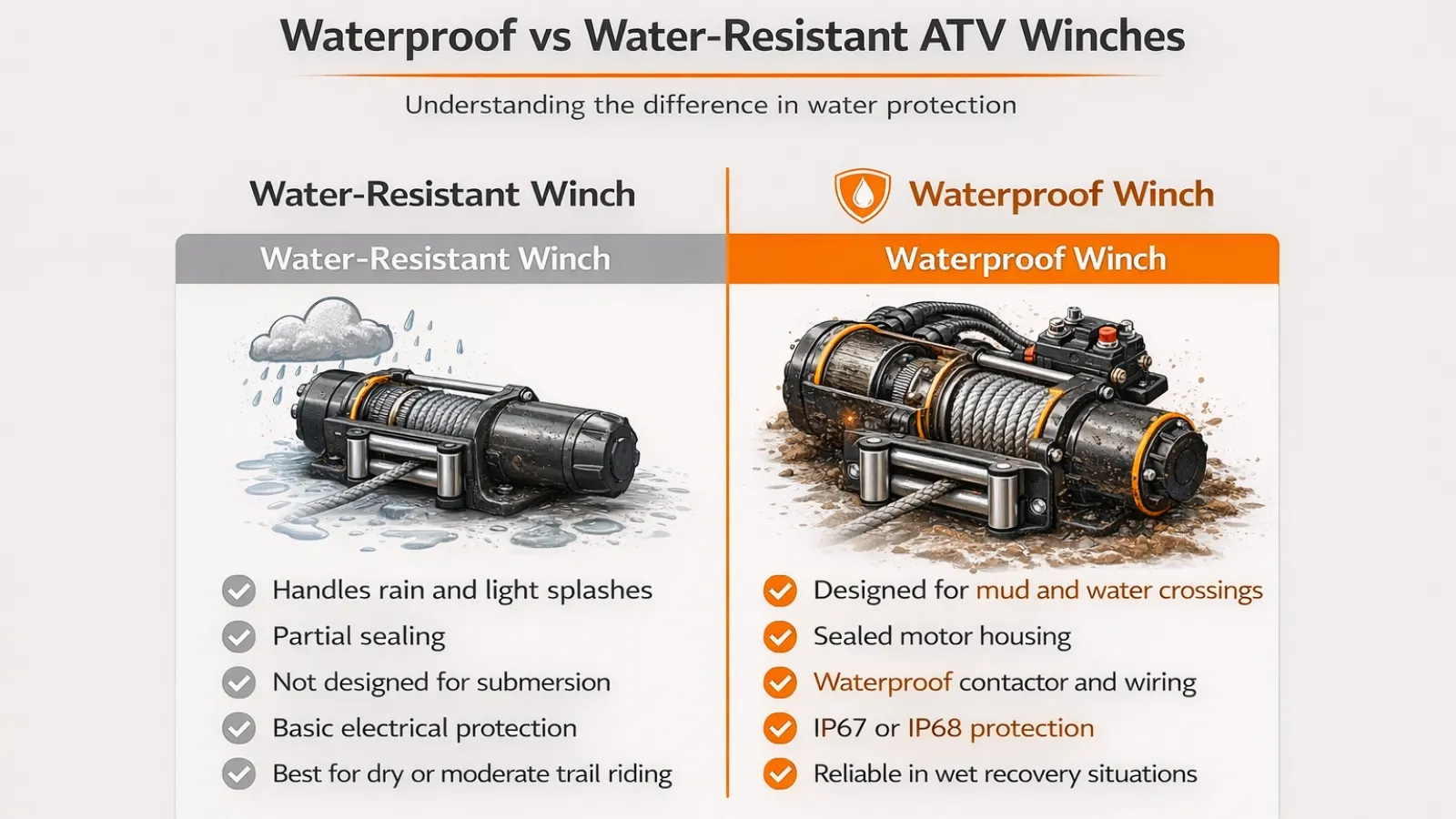

Waterproof vs Water-Resistant Winches

Water-resistant winches can handle rain, splashes, and light mud, but they are not designed for full water exposure. Waterproof winches are built with sealed motors, waterproof electrical components, and gasketed housings to prevent water intrusion during mud riding or creek crossings.

Key differences include:

Feature	Water-Resistant Winch	Waterproof Winch
Rain protection	Yes	Yes
Mud resistance	Moderate	High
Submersion protection	No	Yes (with IP rating)
Electrical sealing	Basic	Fully sealed

Most high-quality waterproof winches carry IP67 or IP68 ratings, indicating strong resistance to both dust and water.

Rider takeaway: For riders who frequently encounter mud holes or water crossings, waterproof winches provide much greater reliability.

What to Look for in a Waterproof ATV Winch

If you plan to ride in wet or muddy terrain, choosing the right waterproof winch features can make a big difference in long-term durability.

Here are several things worth paying attention to.

Sealed motor housing

The motor is the most vulnerable part of a winch. A sealed motor housing prevents water and debris from entering the electrical components that power the winch.

Waterproof contactor

Older winches used exposed solenoids, which were prone to water damage. Modern waterproof winches often use sealed contactors that are much more resistant to moisture and corrosion.

IP rating

Some manufacturers list an IP rating to indicate how well the winch resists dust and water.

For ATV use, an IP67 rating is a strong indicator of waterproof protection.

Durable gearbox sealing

The planetary gears inside a winch must remain lubricated and protected. Sealed gear housings help prevent water or mud from contaminating the internal grease.

Synthetic rope compatibility

Many waterproof winches come with synthetic winch rope, which performs better in muddy environments and is safer to handle during recovery. Read our winch string selection guide to get clear insight on this.

Rider takeaway: A truly waterproof winch protects the electrical system, motor, and gearbox — not just the outer housing.

Dive in: Which control is safer and efficient during off-road recovery?

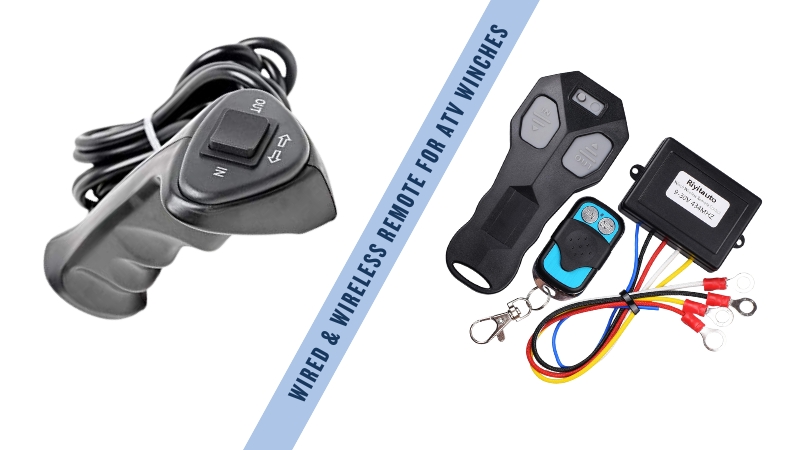

Wired vs Wireless Winch Controls

Some waterproof ATV winches include wireless remote controls, allowing the rider to operate the winch from a safe distance.

Wireless remotes can be helpful when:

• navigating difficult recoveries
• working alone
• controlling the winch from different angles

However, many riders still prefer wired remotes because they are simple, reliable, and unaffected by battery or signal issues.

Both options work well — the best choice often comes down to rider preference.

Rider takeaway: Wireless remotes add convenience, but wired controls remain extremely dependable in muddy trail conditions.

What Size Waterproof ATV Winch Do You Need?

A good rule of thumb is to choose a winch rated at 1.5 to 2 times the weight of your ATV. This ensures the winch can pull the machine out of mud, snow, or steep terrain without overloading the motor.

Typical ATV winch sizes include:

• 1500 lb winch — small ATVs or youth models
• 2000–2500 lb winch — most mid-size ATVs
• 3000–3500 lb winch — larger utility ATVs and heavier trail machines

Going too small can cause the winch to stall during recovery, while an oversized winch adds unnecessary cost and weight.

Rider takeaway: Match the winch capacity to your ATV weight and the type of terrain you ride most often.

Best Use Cases

Waterproof ATV winches really shine in tough off-road scenarios.

Muddy Trails and Swamps

If you ride in thick, sticky mud, getting stuck is pretty much guaranteed at some point. A waterproof winch pulls you out quickly without choking on the muck.

River Crossings

Crossing water isn’t just risky—it’s a test of your equipment. A regular winch can fail mid-crossing, but a waterproof one powers through without missing a beat.

Snow and Ice

Snow and frozen trails create slippery situations where a winch is often your only option for recovery. A waterproof design keeps working even when everything else is frozen solid.

Rainy and Wet Weather

Even if you don’t plan on water rides, you can’t avoid the weather. A waterproof winch handles downpours without risk of shorting out.

Real Trail Scenario: When Waterproofing Matters

Imagine climbing a muddy hill after a night of heavy rain.

Halfway up the trail, the ATV sinks into a deep rut and begins sliding backward toward a water-filled ditch.

The only way out is to anchor the winch line to a nearby tree and pull the machine forward.

If the winch motor has been compromised by water intrusion, this is exactly when problems appear — the motor may stall or the contactor may fail to engage.

A waterproof winch reduces this risk because its sealed electrical and mechanical components are designed to handle wet trail conditions.

Rider takeaway: Waterproofing matters most when the trail becomes unpredictable — which is exactly when the winch becomes essential.

Top Waterproof ATV Winch Brands & Models

Not all ATV winches are designed to handle repeated exposure to mud, water, and harsh trail conditions. The models below were selected based on several factors that matter most for waterproof reliability, including sealed motor construction, waterproof ratings, pulling capacity, and real-world durability in wet environments.

These winches come from manufacturers known for building dependable recovery equipment for ATVs and UTVs, with designs that prioritize sealed electrical components, corrosion resistance, and consistent pulling performance in difficult terrain.

Recommended Read: Why is Warn the Most Reliable ATV Winches

WARN Axon 45-S Powersport Winch

Key Features:

• 4,500 lb pulling power
• Fully waterproof with IP68-rated construction
• Synthetic rope and all-metal architecture
• Digital contactor built into the winch body

Why it’s a beast:
The Axon 45-S is WARN’s new-gen winch, built tougher than its VRX cousins. It integrates the motor and contactor into a single sealed unit, making it nearly immune to water damage or electrical shorts.

The synthetic rope is fast and safe, while the digital load control keeps things running cool even under heavy stress. It’s a premium ATV winch for riders who demand zero-fail performance in mud, water, or snow.

Viper Max 3500 Winch (by MotoAlliance)

Key Features:

• 3,500 lb pull capacity with synthetic or steel cable
• IP67 waterproof motor and sealed solenoid
• Metal gears and rugged weather-resistant finish
• Includes handlebar switch and wireless remote

Why it deserves a look:
The Viper Max 3500 flies under the radar compared to the Elite series but offers nearly the same rugged protection and performance. It’s fully sealed against the elements, and its heavy-duty construction holds up on rough trails and creek crossings.

Riders love it for the easy install, fast line speed, and consistent torque in wet recovery situations. It can be a worthy addition to our roundup of winches meant for mid-range to larger ATVs.

Bulldog Winch 15021 Utility Series (4,000 lbs)

Key Features:

• 4,000 lb capacity
• Sealed motor and contactor (IP67-rated)
• Dynamic braking and smooth gearing
• Comes with a rocker switch and wireless remote

Why it’s underrated:
The Bulldog 15021 doesn’t have flashy branding, but it’s a workhorse. Built with waterproofing in mind, it’s ideal for riders who frequently face rain, snow, and backwoods bogs.

The braking system is especially responsive, giving you extra control during steep or angled pulls. It’s a dependable unit for riders who value quiet strength over hype.

Keeper KU5.5S Waterproof Winch (5,500 lbs)

Key Features:

• Heavy-duty 5,500 lb capacity
• IP68-rated waterproofing
• Includes synthetic rope, wireless remote, and fairlead
• High-torque sealed motor for heavy pulls

Why it impresses:
The KU5.5S from Keeper is a big step up for riders with heavier ATVs or UTVs. Its full waterproofing, high torque, and built-in load protection features make it ideal for deep trail work, recovery missions, or game hauling.

It’s not a flashy name, but this winch regularly outperforms more popular models when the trail gets rough and wet.

Anvil Off-Road 3500 Winch Kit

Key Features:

• 3,500 lb rated line pull
• Fully sealed solenoid and contractor box
• Durable synthetic rope and fairlead included
• Comes with both wireless and rocker switch remotes

Why it’s a hidden gem:
Anvil Off-Road’s 3500 kit is made for serious riders on a budget. It’s got a waterproof setup from top to bottom and a no-nonsense design that holds up in repeated wet use.

The included accessories make it trail-ready right out of the box, and the pulling power is reliable even in thick, sticky mud. It’s one of the best-kept secrets in entry-level waterproof winching.

Black Ops Winch by Rough Country (4500 lb)

Key Features:

• 4,500 lb capacity with synthetic cable
• IP67 waterproof construction
• Powerful 1.4 HP motor and dynamic braking
• Includes wide fairlead, hook, and wireless remote

Why it’s worth your attention:
The Rough Country Black Ops 4500 blends sleek design with rugged performance. It’s sealed to handle wet and muddy conditions with no issue, and the synthetic rope makes it ideal for ATV riders concerned about safety and weight.

Built by a company known for its off-road gear, this winch packs serious pulling power in a compact, trail-ready frame. That’s why it has appeared in our recommendations of rated winches for UTVs and ATVs as well.

Each of these waterproof winches offers different strengths depending on the ATV size, terrain, and riding conditions, so choosing the right model depends on how and where you ride. Our authority guide on best UTV winch manufacturers will add to your insight on how making plays a crucial role in winch performance and quality.

Waterproof ATV Winch Comparison Chart

The chart below highlights several waterproof ATV winches with different pulling capacities and waterproof ratings to help riders compare options quickly.

Model	Pull Capacity	Waterproof Rating	Rope Type	Best For
WARN Axon 45-S	4500 lb	IP68	Synthetic	Heavy mud, water crossings
Viper Max 3500	3500 lb	IP67	Synthetic / Steel	Trail riding, creek crossings
Bulldog 15021	4000 lb	IP67	Steel	Snow, steep terrain
Keeper KU5.5S	5500 lb	IP68	Synthetic	Heavy ATVs or UTVs
Rough Country Black Ops	4500 lb	IP67	Synthetic	Mixed terrain riding

These winches offer varying combinations of pulling power, waterproof protection, and rope types, allowing riders to choose based on terrain and ATV size.

Rider takeaway: Look for a balance of waterproof rating, pulling capacity, and build quality rather than focusing on one specification alone.

When sealed motors and corrosion-resistant components designed for muddy trails are the look out, examine a trail-tested budget winch that handles wet off-road conditions like any of it’s high-end counterparts.

Dive in: Top 7 winch kits for your off-road adventures

ATV Winch Kits vs Individual Components

Many riders choose a complete ATV winch kit instead of purchasing individual parts.

A typical winch kit includes:

• the winch unit
• wiring harness
• mounting plate
• handlebar switch
• wired or wireless remote

Winch kits simplify installation because all necessary components are designed to work together.

For riders installing a winch for the first time, a complete kit can save time and prevent compatibility issues.

Rider takeaway: A winch kit is often the easiest way to install a waterproof winch on an ATV.

Installation Tips

Installing your winch correctly is just as important as picking the right one.

• Use the right mounting plate. Most winches need a specific plate that matches your ATV’s frame. Using a generic or incorrect plate can cause stress cracks or misalignment.
• Seal all electrical connections. Use dielectric grease on plugs and wrap connections with heat-shrink tubing or waterproof tape.
• Mount the solenoid in a protected spot. Keep it away from water splashes or direct hits from trail debris.
• Test it dry first. Before taking it off-road, do a full test in your garage or driveway. Make sure the winch pulls evenly and that the remote works without delay.

Maintenance Tips

Even the best waterproof winch needs care to keep running smoothly.

• Rinse after use. Mud, salt, and water can still get on the outside and wear things down over time. A quick rinse and wipe-down helps extend the winch’s life.
• Check the seals. Look at the motor housing, control box, and remote cable ports for signs of wear or cracking. Replace seals or gaskets as needed.
• Keep the rope spooled tight. After use, always rewind the rope under tension. Loose or uneven spooling can damage the drum or cause the rope to tangle.

Protecting Your ATV from Water Damage

Waterproof ATV covers are commonly used to protect machines during storage, but they don’t protect components that face the harshest conditions during riding.

The winch sits at the very front of the ATV, where it encounters:

• mud spray
• creek crossings
• trail debris
• pressure washing

Even if the ATV is stored under a waterproof cover, the winch will still face water and mud on the trail.

That is why riders who frequently encounter wet terrain often choose a sealed waterproof winch instead of a basic model.

Rider takeaway: A waterproof cover protects your ATV during storage — a waterproof winch protects your recovery system on the trail.

Frequently Asked Questions on Waterproof Off-road Winches

Can ATV winches get wet?

Yes, ATV winches can get wet, but not all winches are designed to handle heavy water exposure.

Basic winches are usually water-resistant, meaning they can tolerate rain and light splashes. However, frequent mud riding or water crossings can allow moisture to reach the motor or electrical components. A waterproof ATV winch is better suited for these conditions because it uses sealed housings and protected wiring.

Do I really need a waterproof ATV winch?

You need a waterproof ATV winch if you regularly ride in mud, water crossings, snow, or wet trail conditions.

While standard winches may work on dry trails, sealed waterproof models protect the motor and electrical system from moisture. This helps prevent corrosion, electrical failures, and reliability problems during recovery situations.

What is the best winch size for an ATV?

The best winch size for an ATV is usually rated at 1.5 to 2 times the ATV’s weight.

For example, an ATV weighing around 1,000 pounds typically uses a 1,500–2,500 lb winch, while larger machines may benefit from 3,000–3,500 lb winches. Choosing the right size ensures the winch has enough pulling power for mud, steep terrain, or loaded ATVs.

Are wireless winch remotes reliable?

Yes, modern wireless winch remotes are generally reliable and widely used for off-road recovery.

They allow riders to operate the winch from a safer distance while guiding the vehicle or adjusting the cable. However, many riders still carry a wired remote as a backup because it works without batteries or signal interference.

Can a waterproof ATV winch be fully submerged?

Yes, many waterproof ATV winches can handle temporary submersion, depending on their IP rating.

Winches rated IP67 can usually withstand submersion to about 1 meter for up to 30 minutes, while IP68-rated models may tolerate deeper or longer exposure. However, repeated deep submersion can still affect seals over time, so regular inspection and maintenance are recommended.

Does mud damage ATV winches even if they are waterproof?

Mud can still affect ATV winches even if they are waterproof.

Waterproof sealing protects the motor and electrical components, but thick mud can build up around the cable, drum, and fairlead. If left uncleaned, this buildup can increase friction and wear. Rinsing the winch after muddy rides helps keep it operating smoothly.

Final Thoughts

Water and mud are part of the terrain that ATVs are designed to handle, but those same conditions can be hard on mechanical equipment.

Because the winch sits at the front of the machine, it is constantly exposed to moisture, debris, and pressure washing. Over time, that exposure can lead to corrosion, electrical problems, or gearbox contamination.

A waterproof ATV winch helps prevent those issues by protecting the internal components that keep the winch working reliably.

For riders who regularly encounter muddy trails, creek crossings, or wet environments, the added sealing and durability of a waterproof winch can make a big difference when a recovery situation arises.

If you’re building a dependable recovery setup, choosing a properly sized waterproof winch is one of the smartest upgrades you can make.

Continue exploring related topics:

• Essential winch recovery accessories
• Frequent Off-road winching mistakes to avoid
• How ATV and UTV winches differ
